Protecto-Ezecoat
TOTAL WATERPROOFING SYSTEM
►
DESCRIPTION:
Protecto-Ezecoat is a two component, high
solids, Polyurethane coating system, which provides touch, elastic,
skid resistant, durable, heat insulating, abrasion resistant,
waterproofing protection. It forms a thick, seamless and long
lasting film and eliminates water seepage from all kinds of
surfaces.
►
APPLICATION:
The surface is
cleaned dried and freed from dust, oil grease, tar and fungus. A
base coat of Protecto-Ezecoat 100/Wallgard 10 is applied on all cracks and
allowed to dry for 15 minutes and Ezefil crack filling compound is
used to fill up the cracks and joints.
Protecto-Ezecoat
100/Wallgard 10 is then applied over the entire surface area and
allowed to dry for 4-5 hours. Equal weights of Protecto-Ezecoat 200 and 300
are mixed thoroughly and the mixture is applied by brush over the
base coat. The same coat is repeated after 8-12 hours.
After 8-12
hours a topcoat is applied. This topcoat should be mixture of
Protecto-Ezecoat 500 & 600 (aliphatic grade) if the coating is to expose to
sunlight. If a concrete layer or tiles are to be fixed over the
coatings (i.e. no exposure to sunlight) then the topcoat can be a
mixture of Protecto-Ezecoat 200 and 300.
Dry sand is
sprinkled on the final coat (while it is still wet) if any tiles or
a concrete layer is required on top of the coating.
|

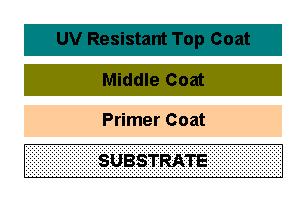

COAT
|
PRODUCT
|
MIXING
RATIO
|
COLOUR
|
POT
LIFE
|
COVERAGE*
Sq.ft/kg
|
RECOAT
TIME
|
THICKNESS
|
|
Base Coat
|
Protecto-Ezecoat 100/
Wallgard 10
|
Single Pack
|
Clear
|
-
|
50 -
60
|
5-6
hrs
|
30-35
microns
|
|
|
|
2nd Coat
|
Protecto-Ezecoat
200 / 300
|
1 : 1
by weight
|
Off White/
Reddish brown
|
30 - 45
min
|
55 - 65
|
6-8
hrs
|
200
microns
|
|
|
|
Top Coat
|
Protecto-Ezecoat
500 / 600
|
4 : 1
by weight
|
White/
Reddish brown
|
3 - 4
hrs
|
70 - 80
|
3 - 4
hrs
|
40
- 45 microns
|
*Coverage varies from surface
to surface, rough surfaces yield lower coverage.
|
►
PHYSICAL PROPERTIES:
|
|
►
CHEMICAL PROPERTIES:
|
|
|
|
|
|
|
|
Tensile
strength (IS 2508) |
40
kg sq.cm
|
|
Hydrochloric
acid, 30%
|
No effect
|
|
Elongation
(IS 2508) |
Minimum
300%
|
|
Sulphuric
acid, 20% |
No
effect
|
|
Abrasion
resistance cycles |
0.15
gms/1000 |
|
Phosphoric
acid, 30%
|
No
effect
|
|
Flexibility
|
Highly flexible.
Does not crack at all working temperatures. |
|
Nitric
acid,
5%
|
No
effect
|
|
Sea
Water
|
No effect
|
|
|
|
|
Ethyl
alcohol
|
No effect
|
|
|
|
|
Kerosene
|
No effect
|
|

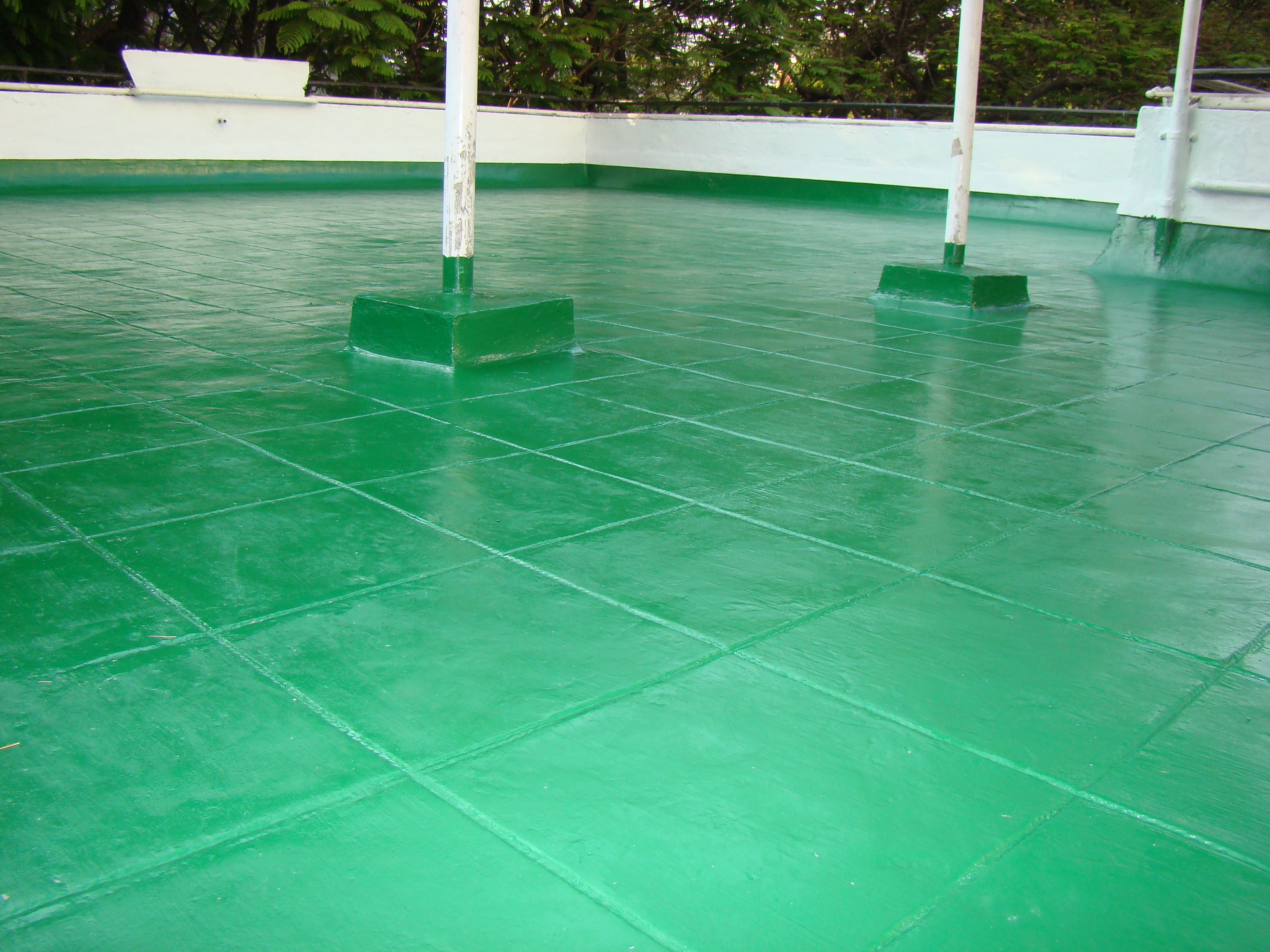

Terrace 1 |

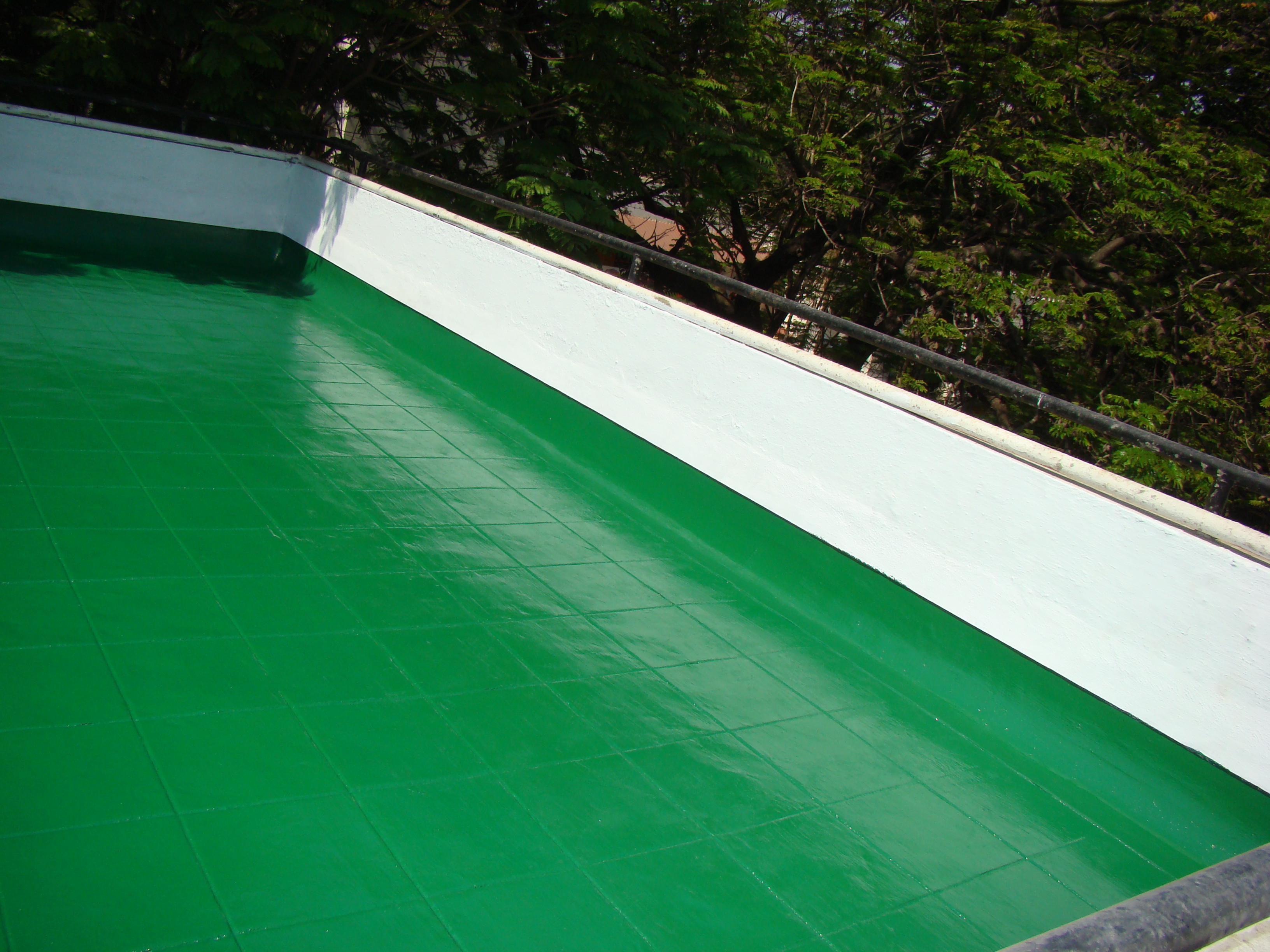

Terrace 2 |
Protecto-Ezecoat formulations are subject to strict quality control, innovations
and improvements to comply with our high standards.
The
above information is given on the basis of our best knowledge and
information and is for your guidance only. Specifications, however, are
subject to change and no guarantee is given or implied.
